Burachem Multi 9654/M

Burachem Multi 9654/M

Burachem Multi 9654/M

Features

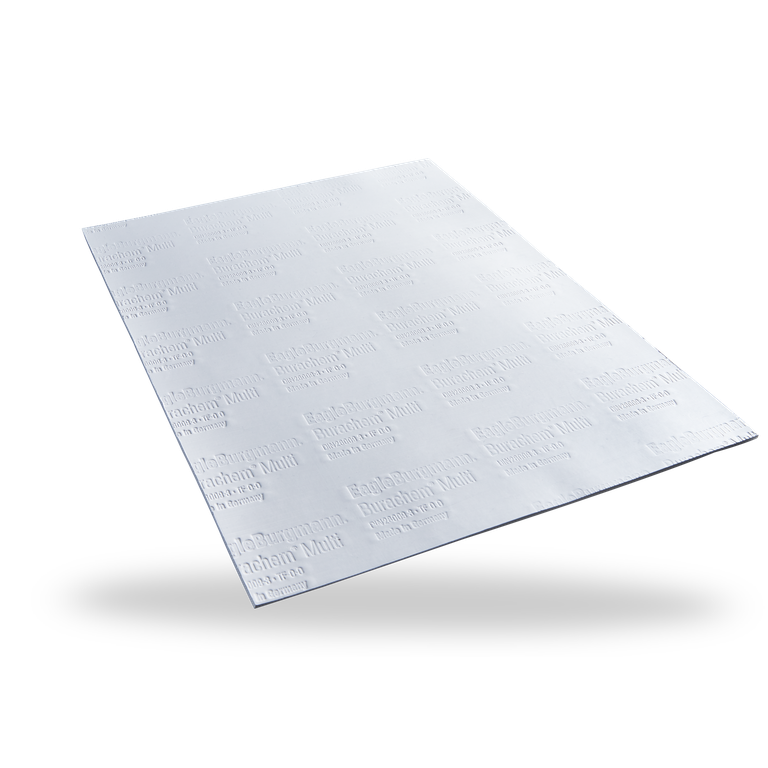

Burachem Multi 9654/M gasket sheet made from 100% pure ePTFE. The special manufacturing method creates a multidirectional fibrillated structure (ePTFE) which gives the gasket its exceptional properties.

Advantages

  • Maximum adaptability
  • High dimensional stability
  • Outstanding compressive strength
  • Can be easily cut to size using hand tools

Operating range

Pressure: p = 200 bar
Temperature
  • Continuous operation:
    t = -270 °C ... +270 °C
  • transient peak temperature:
    t = +315 °C
Recommended surface roughness:
RZ = 12.5 ... 50 µm

Chemical resistance: pH = 0 ... 14
Universal chemical resistance, even to concentrated acids and alkalis. Not suitable for use in dissolved and molten alkali metals or in elementary fluorine at T > 150 °C and p > 40 bar.

Standards and approvals

  • FDA
  • TA Luft
  • BAM (upon request)
  • EG 1935/2004
  • VDI 2200

Variants

9654/MP (sheets)
9654/MPR (rings and cuts)
9655/MRIG (rings with inner eyelet) 9655/MRA (frames) 9654/MS (segments)

Forms of supply

  • Sheets:
    1.500 x 1.500 mm
    0,5 / 1,0 / 1,5 / 2,0 / 3,0 / 4,0 / 5,0 / 6,0 mm thickness
  • Rings and molded parts:
    Standard dimensions as per DIN EN 1514-1 or ASME B16.21
